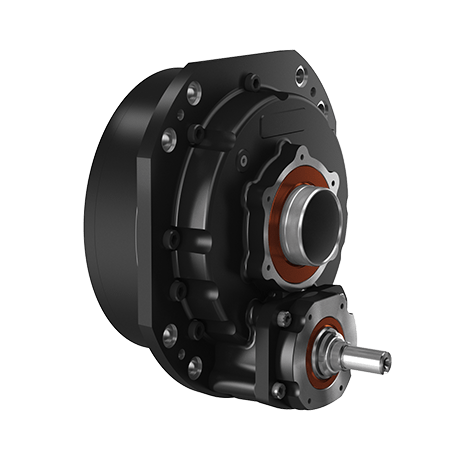

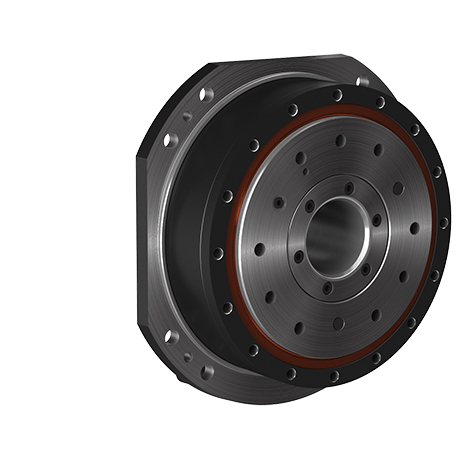

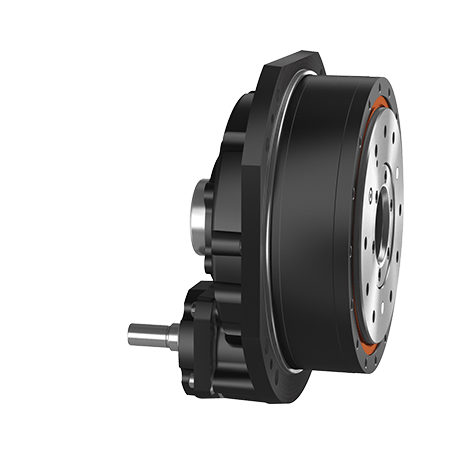

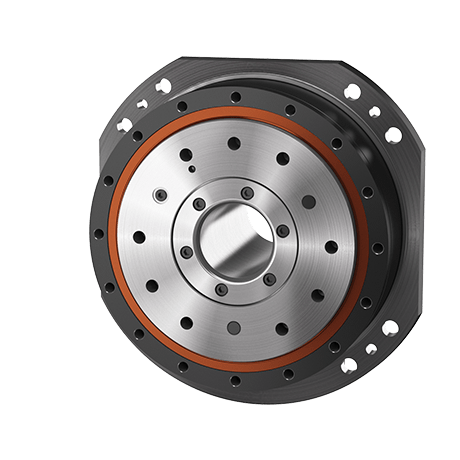

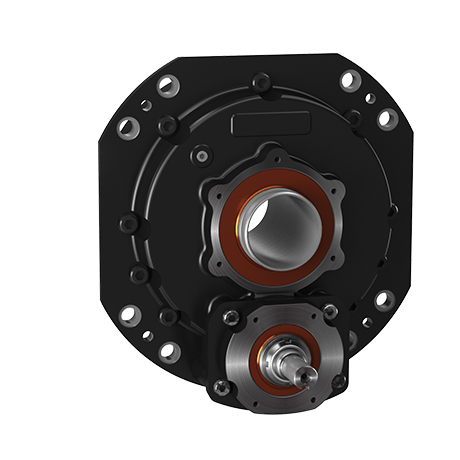

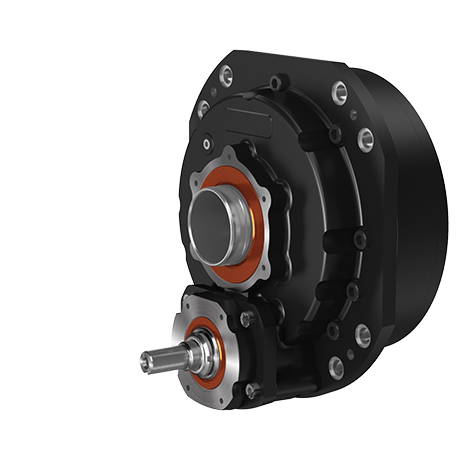

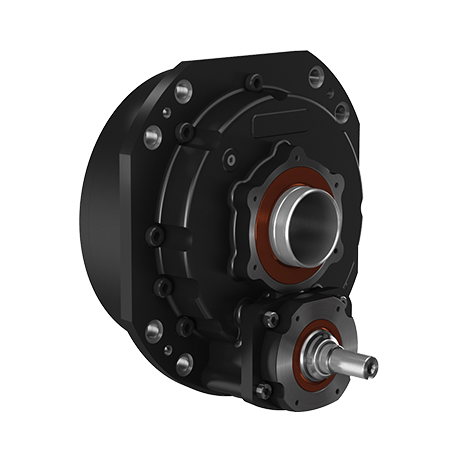

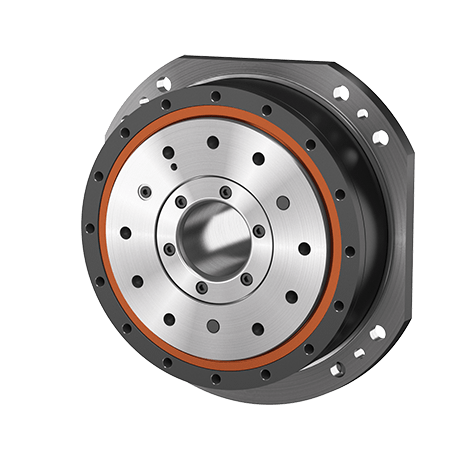

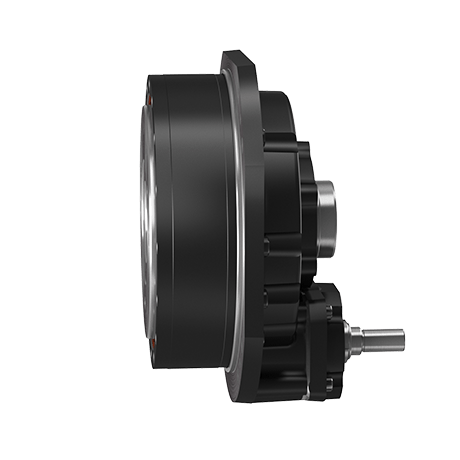

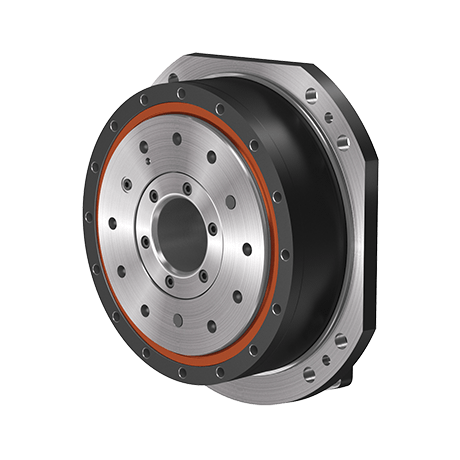

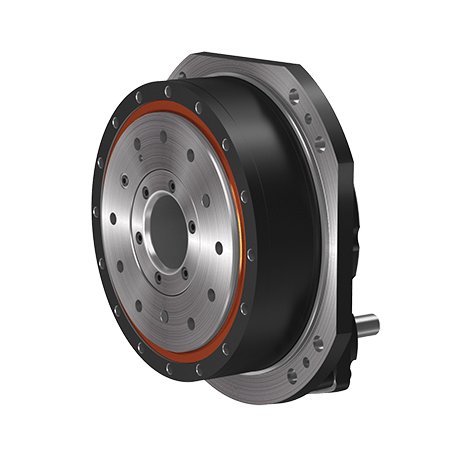

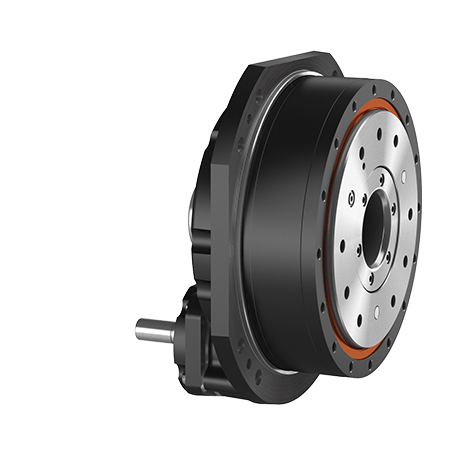

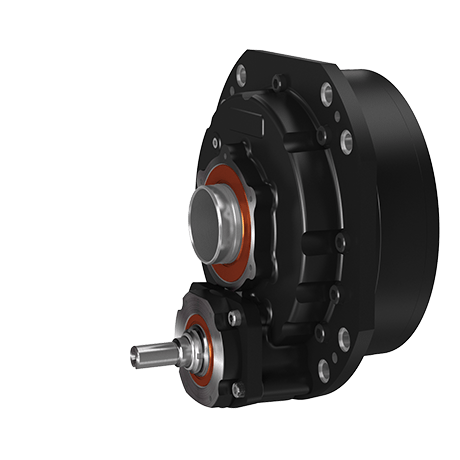

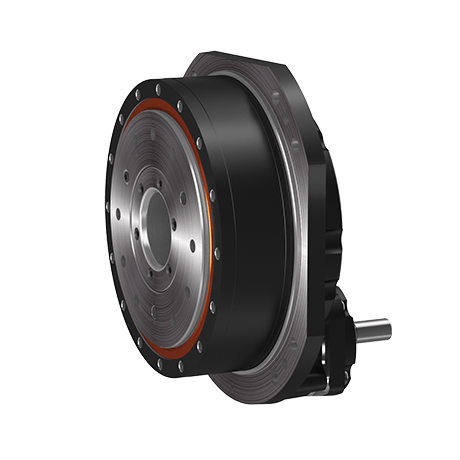

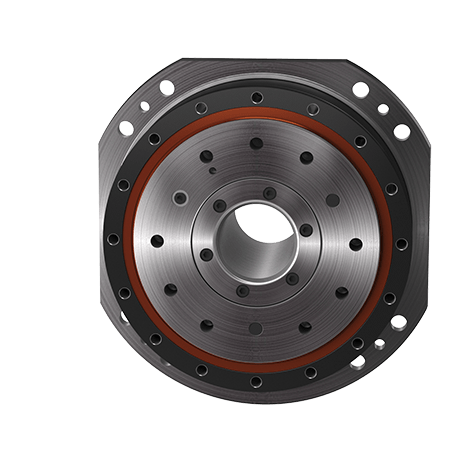

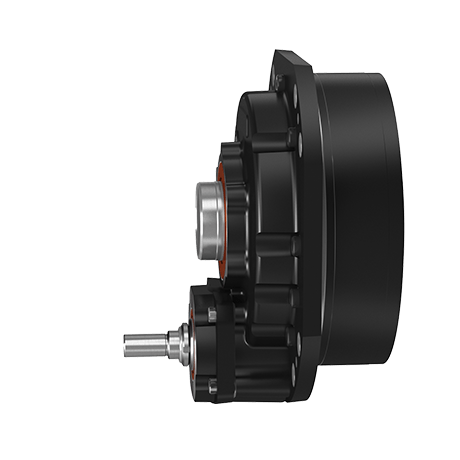

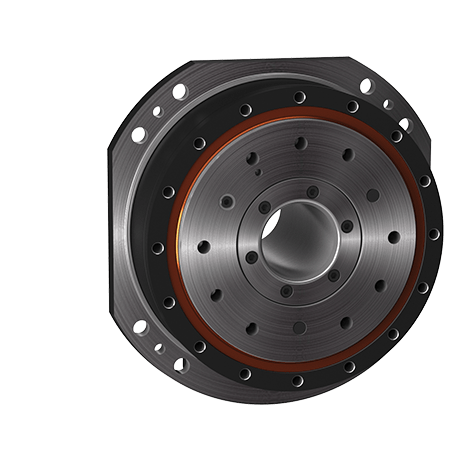

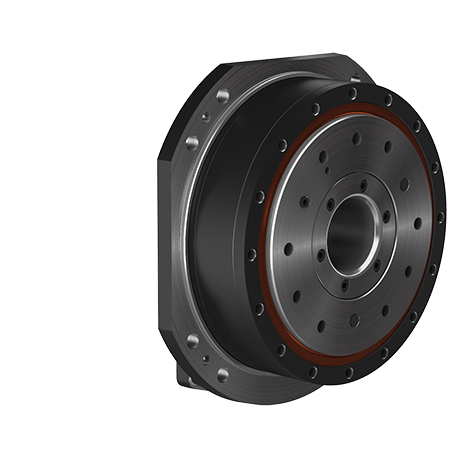

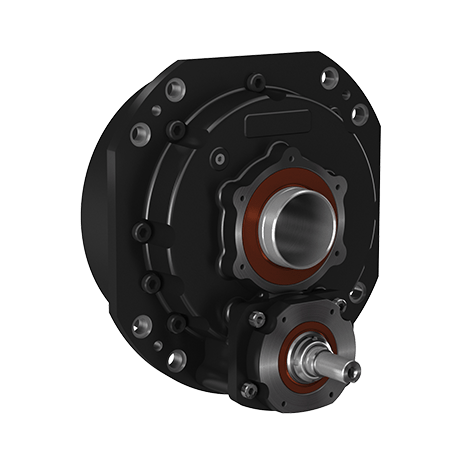

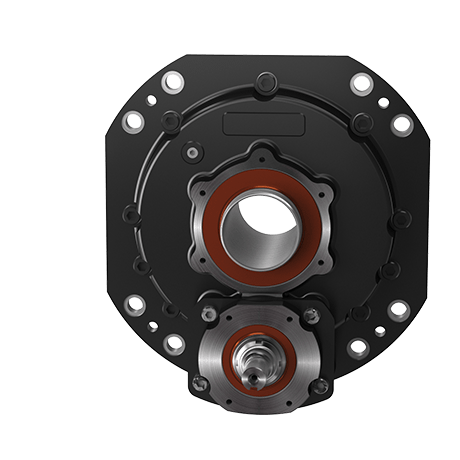

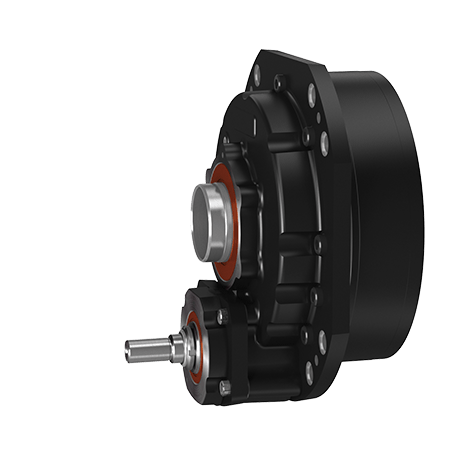

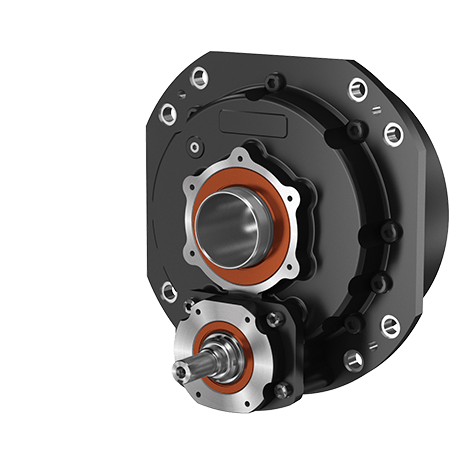

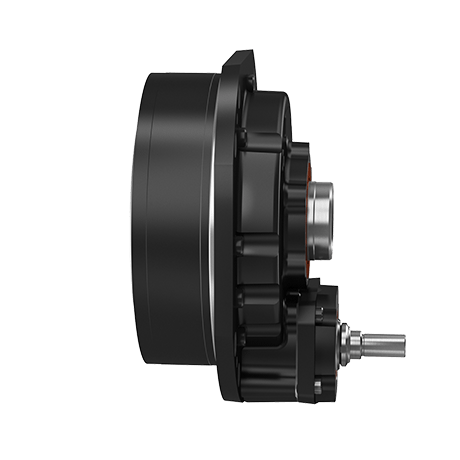

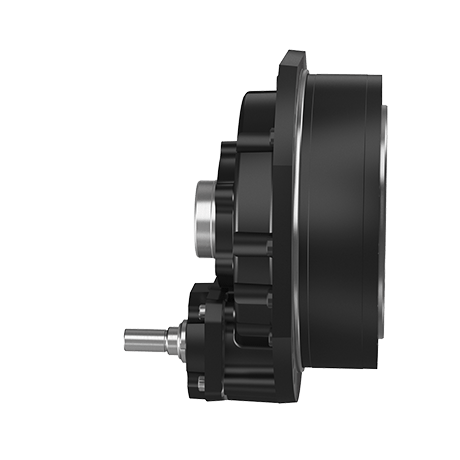

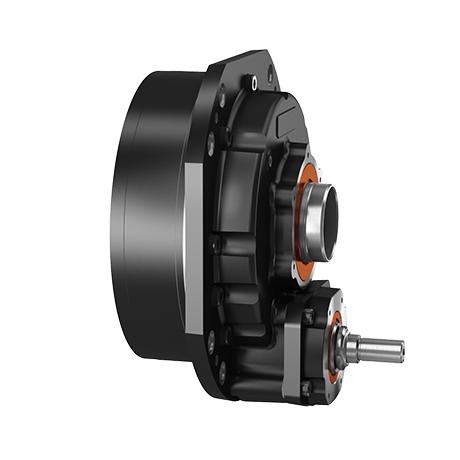

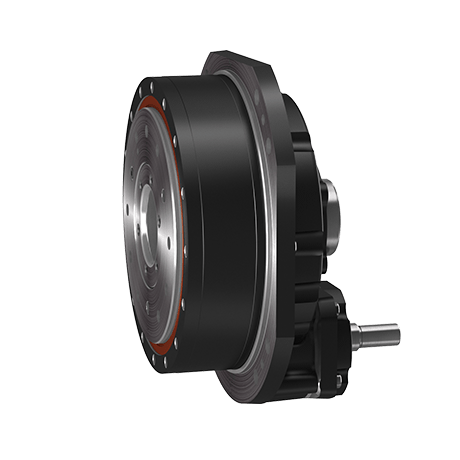

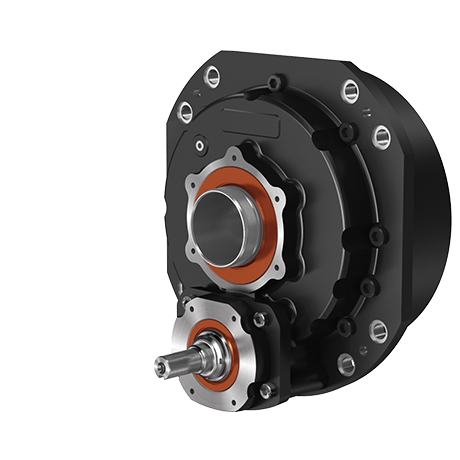

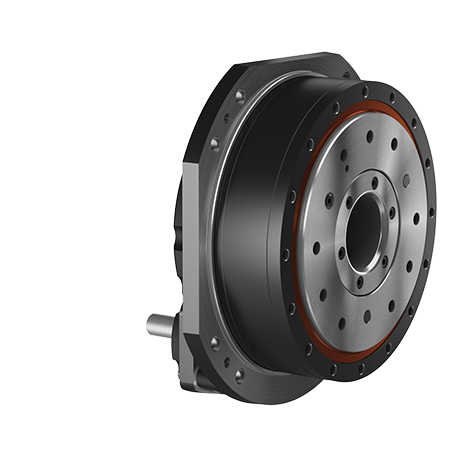

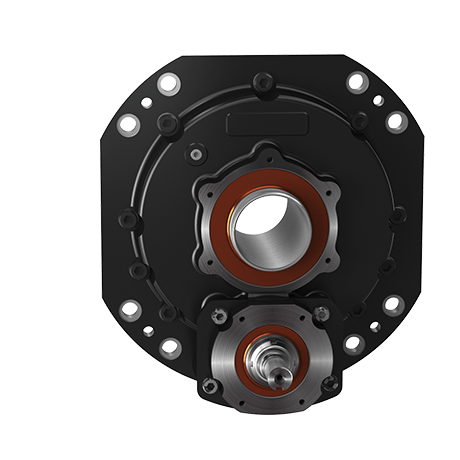

齿轮箱RDP-C

传动输入型精密减速机的齿轮箱。中空型。

作为RD2系列全新产品的传动输入型齿轮箱。由于是皮带轮输入，增加了电机设置场所的自由度，也可通过皮带轮调节减速比。该产品可根据客户的方案进行设置。

Product Features

  • 传动输入型
  • 背隙在1分以内
  • 空程在1分以内
  • 主轴承内置
  • 已装入润滑脂

Spec Information

Model
RDP-010C
RDP-027C
RDP-050C
RDP-100C
RDP-200C
RDP-320C
Discrimination1

 Series

 Unit Type

 Series Symbol

 Model

 Motor Series

 w number

(w)

 w number

(kw)

 Type

 Ratio

 Actual Ratio

 Rated Torque

（N・m）

 Allowable Scceleration/Deceleration Torque

（N・m）

 Momentary Maximum Allowable Torque

（N・m）

 Dimension α1

(mm)

 Dimension α1

(mm)

 Dimension Din

(mm)

 Input Shaft Rated Moment

（N・m）

 Input Shaft Allowable Moment

（N・m）

 Dimensionβ

(mm)

 Rated Output Speed

（r.p.m.）

 Rated life

（hr）

 Allowable Output Speed

（r.p.m.）

 Allowable Input Speed

（r.p.m.）

 Backlash

(arc.min.)

 Lost Motion

(arc.min.)

 Torsional Regidity

(Nm/arc.min.)

 Moment Rejidity

(Nm/arc.min.)

 Start-up Effciency

(%)

 Moment of Inertia

(kg・m^2)

 Mass

(kg)

 Allowable Moment 1

(N・m)

 Allowance Thrust 1

(N)

 Allowable Moment 2

(N・m)

 Allowance Thrust 2

(N)

 Output Rotational Speed 1

(min-1)

 Output Torque 1

(N・m)

 Output Rotational Speed 2

(min-1)

 Output Torque 2

(N・m)

 Brake Holding Torque

(N・m)

 Reduced Value Of The Inertia Moment For The Input Shaft

(kgm2)

 Capacity

 Part Number

 Quantity

 Packaging Type

 Capacity

 Part Number

 Quantity

 Packaging Type

 Maximum allowable load (reference values)

(kg)

 Maximum center of gravity height

(mm)

 Maximum tilt angle

(deg)

 Reduction ratio (Rotary axis)

 Reduction ratio (Tilt axis)

 Allowable startup/stop torque (Rotary axis)

(Nm)

 Allowable startup/stop torque (Tilt axis)

(Nm)

 Rotary axis allowable output speed (Operation Example)

（r.p.m.）

 Tilt axis allowable output speed (Operation Example)

（r.p.m.）

 Backlash・Lost motion (Rotary axis)

(arc.min.)

 Backlash・Lost motion (Tilt axis)

(arc.min.)

 Moment of inertia I (I=GD2/4) motor input conversion (Rotary axis)

(kg-m2)

 Moment of inertia I (I=GD2/4) motor input conversion (Tilt axis)

(kg-m2)

 Motor capacity (reference values) ※1

(w)

 Wheel diameter

(mm)

 Maximum speed ※1

(m/min)

 Loading capacity/wheel

(kgf)

 Loading load/4 wheels AGV (reference values) ※1

(kgf)

0.22 108 108 98 245 58 15 6,000 32 3,500 less than 1 less than 1 47 421 0.0000552 10.3 686

0.594 100 99.82 265 662 58 15 6,000 35 3,500 less than 1 less than 1 147 1,068 0.000213 16.4 980

1.099 109 109 490 1,225 73.8 15 6,000 28 3,000 less than 1 less than 1 255 1,960 0.000302 28.8 1,764

2.198 101 100.5 980 2,450 73.8 15 6,000 30 3,000 less than 1 less than 1 510 2,813 0.000905 36.9 2,450

4.396 106 105.83 1,960 4,900 86.6 15 6,000 19 2,000 less than 1 less than 1 980 9,800 0.00237 93.8 8,820

7.034 157 157 3,136 7,840 86.6 15 6,000 13 2,000 less than 1 less than 1 1,960 12,740 0.00387 139.7 20,580
※1 Subject to change depending on the operating conditions

Download

RDP-C
Series

Product Catalog

Instruction Manual

Product CAD Drawing 2D
Product CAD Drawing 3D
Parts 2D CAD (Bushing／Flange)
Parts 3D CAD (Bushing／Flange)
Base Flange 2D CAD
Base Flange 3D CAD

Inquiry
